Mushroom Head Appearance Anti-UAV Detector Portable Drone Detection Device

Name: Mushroom Head Appearance Anti-UAV Detector Portable Drone Detection Device
Brand: Wolves Team Limited
SKU: S300
Price: 25800 USD
Availability: InStock

Markenname:	Wolves Team
Modellnummer:	S300
Mindestbestellmenge:	1
Preis:	$25800
Lieferzeit:	7-15
Zahlungsbedingungen:	L/C, D/A, T/T, Western Union

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

ROHS/FCC/ISO 9000/CE

Produktname:

Pilzkopf-Anti-UAV-Detektor

Modellnummer:

S300

Produkttyp:

UAV-Detektor / Anti-Drohnen-Überwachungsgerät

Erscheinungsbild:

Pilzkopf-Design

Nachweisrichtung:

Omnidirektionale 360°-Erkennung

Wichtigste erkannte Signale:

2,4 GHz WLAN, 5,8 GHz WLAN, UAV-Fernbedienungssignal, GPS-Signal

Höchstdetektionsbereich:

1000 m

Erkennungshöhe:

Geringe Höhe (0 ~ 1000 m)

Ansprechzeit:

≤ 1 s

Max. verfolgbare Ziele:

32/64 Ziele

Erkennungsgenauigkeit:

Hohe Präzision

Arbeitsmodus:

Kontinuierliche Überwachung rund um die Uhr

Installationsmethode:

Feste Wandmontage / Bodenmontage

Schalenmaterial:

Aluminiumlegierung + ABS

Wasserdichter Grad:

IP54 / IP65

Betriebsspannung:

DC 12V / AC 110~240V

Stromverbrauch:

15W / 25W

Arbeitstemperatur:

-20℃ ~ +60℃

Lagertemperatur:

-30℃ ~ +70℃

Kommunikationsschnittstelle:

RJ45 / RS485 / Drahtlose Übertragung

Ausgangssignal:

Echtzeit-Alarm-/Positionsdatenausgabe

Alarmmodus:

Tonalarm / Lichtalarm / Fernalarm

Anwendungsszenarien:

Grenzschutz, Flughafen, Gefängnis, Naturschutzgebiet, Regierungsstandort, kritische Infrastruktur

Kernmerkmale:

Omnidirektionale Erkennung, Überwachung geringer Höhen, automatischer Alarm, stabiler Betrieb

Verpackung Informationen:

Kartonverpackung

Versorgungsmaterial-Fähigkeit:

Hervorheben:

portable mushroom head drone detector

anti-UAV detection device

drone detector with mushroom head

Produktbeschreibung

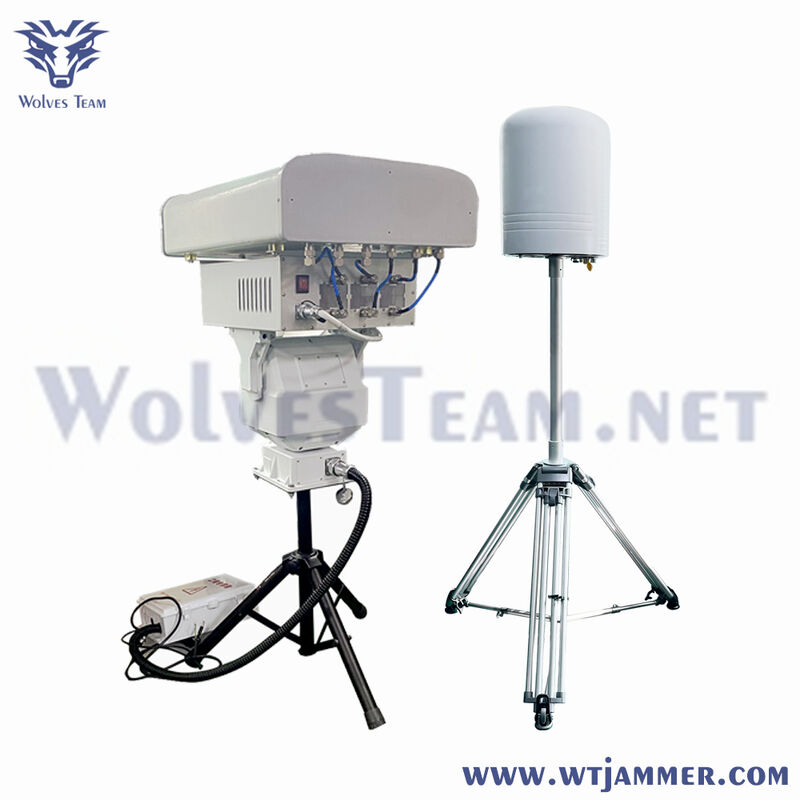

Mushroom Head Appearance Anti-UAV Detector Portable Drone Detection Device

Product Overview

The Array Radar Low-Altitude Surveillance System is a specialized 3D space surveillance radar engineered for detecting low-altitude small targets. Featuring 360° omnidirectional coverage and wide elevation angle coverage, this system provides comprehensive aerial monitoring capabilities.

This advanced system performs real-time detection of various targets including birds, aircraft, pedestrians, and vehicles. It continuously discovers and tracks targets while transmitting relevant data to designated terminals. With three installation options—fixed mounting, vehicle mounting, and portable deployment—the system offers flexible deployment across diverse application scenarios.

Key Features

Full-Space 3D Detection: Capable of all-day, all-weather large-area monitoring with accurate capture of three-dimensional data including azimuth, distance, and altitude. Delivers long detection range and high data update rate.
Target Tracking & Guidance: Beyond basic detection, outputs real-time target information and supports guiding high-precision angle measuring devices. Tracks up to 64 targets simultaneously with periodic position coordinate updates.
Excellent Target Identification: Features automatic classification and recognition technology with over 80% identification rate for various low-altitude targets including pedestrians, vehicles, mini UAVs, helicopters, and birds.
Superior Environmental Adaptability: Operates stably in complex terrains including plateaus, mountains, and hills. Supports local data display and remote transmission via communication links for inter-system target guidance.

Technical Specifications

Indicators	Parameters
Working Frequency	Ku band
Working Mode	Pulse Doppler
Detection Range	≥5km
Antenna Fan Sweep Range	0-360°
Pitch Beam Width	10-40°
Azimuth Beam Width	2.4°
Target Radial Velocity	2.8-144km/h
RCS	≥ 0.01M²
Minimum Detection Range	≤120m
Ranging Accuracy	<10m
Azimuth Accuracy	≤0.5°
Distance Resolution	≤15m
Azimuth Resolution	≤0.5°
Speed Accuracy	0.293m/s
Transmit Power	120W
Weight	55kg

Applications

Prisons and other large sensitive locations including governmental compounds, Homeland Security, Correctional Centers, Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities, Government facilities, Power Generating Plants, and more.

Frequently Asked Questions

Why choose us?
- Passionate, experienced, and highly-educated R&D and sales team
- Reasonable pricing and reliable products with skillful assembly
- Strict quality assurance and quick aftersales service
- Lifetime technical support with customized settings available
Are you manufacturer or trading company?
We are a manufacturer with 15 years of experience. Welcome to visit our factory.
Can we use our logo on the products?
Yes, as a professional signal jammer manufacturer, we offer OEM and ODM services.
How about your product warranty?
We offer one-year warranty upon delivery.

Terms & Conditions

Delivery Time Schedule	2-3 weeks from receipt of confirmed purchase order and advance payment
Payment Terms	50% advance, 50% before shipping
Terms of Delivery	FOB HONGKONG/USA
Warranty	36 months
Software Updates	Free software updates provided for 36 months
Extended Warranty	After 4th year: 5% of total for each additional year
